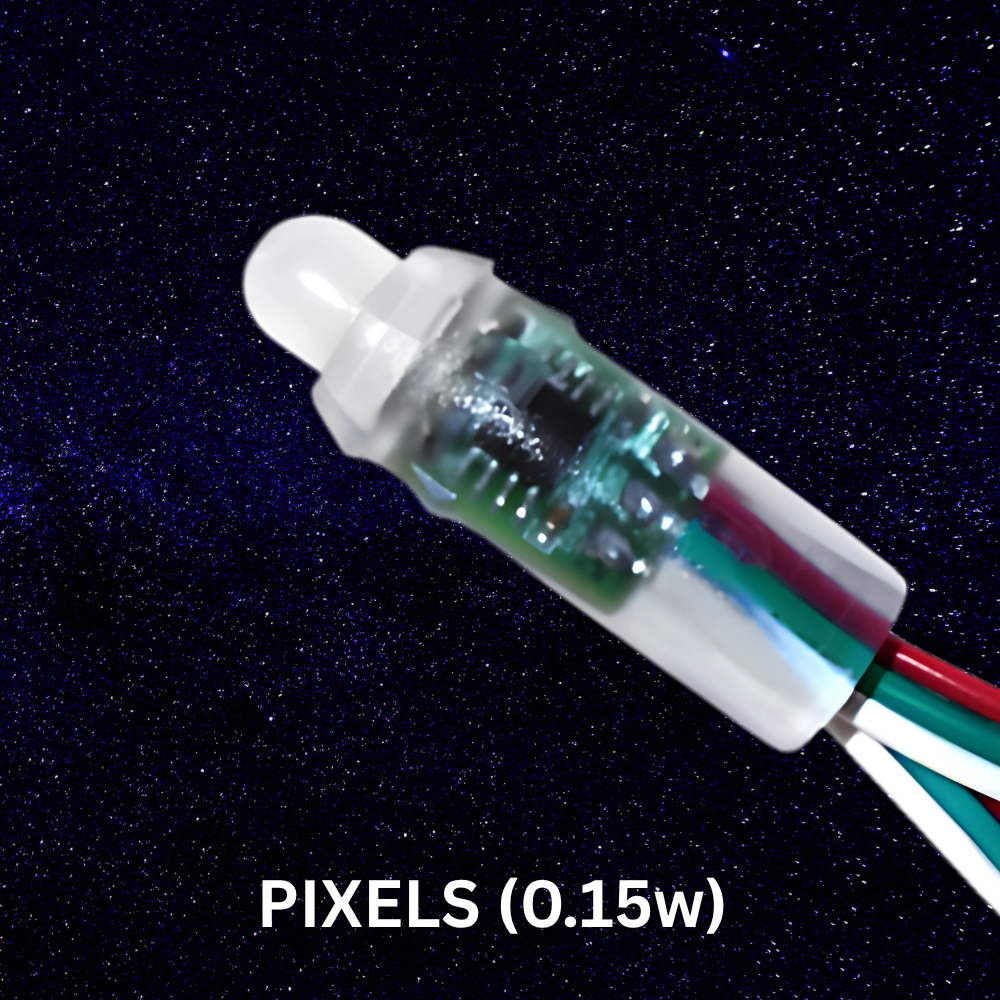

Pixels – 9mm / 120° / 0.15W / 5V / Various Colours / 3 Year Warranty
Online Price:
Original price was: R275.00.R250.00Current price is: R250.00. Vat Incl.
Where can I be used…
-
Animated displays, LED message boards, Decorative outlines, buildings, stages, events, Retail, shopfront lighting.
Why use me?
-
Low power consumption of 0.15W per pixel, ideal for energy-saving projects
-
Bright and vibrant output, perfect for signage and decorative lighting
-
Compact 9mm size with pre-wired design for quick and easy installation
Pixels – 9mm / 120° / 0.15W / 5V / Various Colours / 3 Year Warranty
Online Price:
Original price was: R275.00.R250.00Current price is: R250.00. Vat Incl.
Product Details
Specifications
| Input | 5 Volt DC |
| Power | 0.15 Watt |
| Current | 0.03A |
| Lumens | 15 Lumens |
| Colour Temp | Red, Blue, Green, Yellow, Orange, 4000k, 9000k |
| Qty LED Chips | 1 |
| Viewing Angle | 120° Angle |
| Dimensions | 9mm x 20mm (cutout 9mm) |
| Mounting | Press Through |
| Wire Length | 70mm |
| Max Ambient Temp | 60° C |
| Waterproofing | (IP67) |
| Warranty | 2 Years |
| Max Module | 50 Pixels Per String in Series |
| Datasheet |
Do's and Donts
✅ Do’s
-
🔌 Do ensure correct voltage and controller compatibility before installation
-
🛠️ Do secure each pixel properly to avoid movement or water damage
-
💡 Do test the lights before final installation to check for faulty pixels
❌ Don’ts
-
✂️ Don’t cut or modify the pre-wired strands without proper connectors or experience
-
🌧️ Don’t expose lights to extreme weather without adequate waterproofing
-
⚠️ Don’t overload the power supply or controller beyond its rated capacity
Colour Chart
Basic Diagram & Checklist
