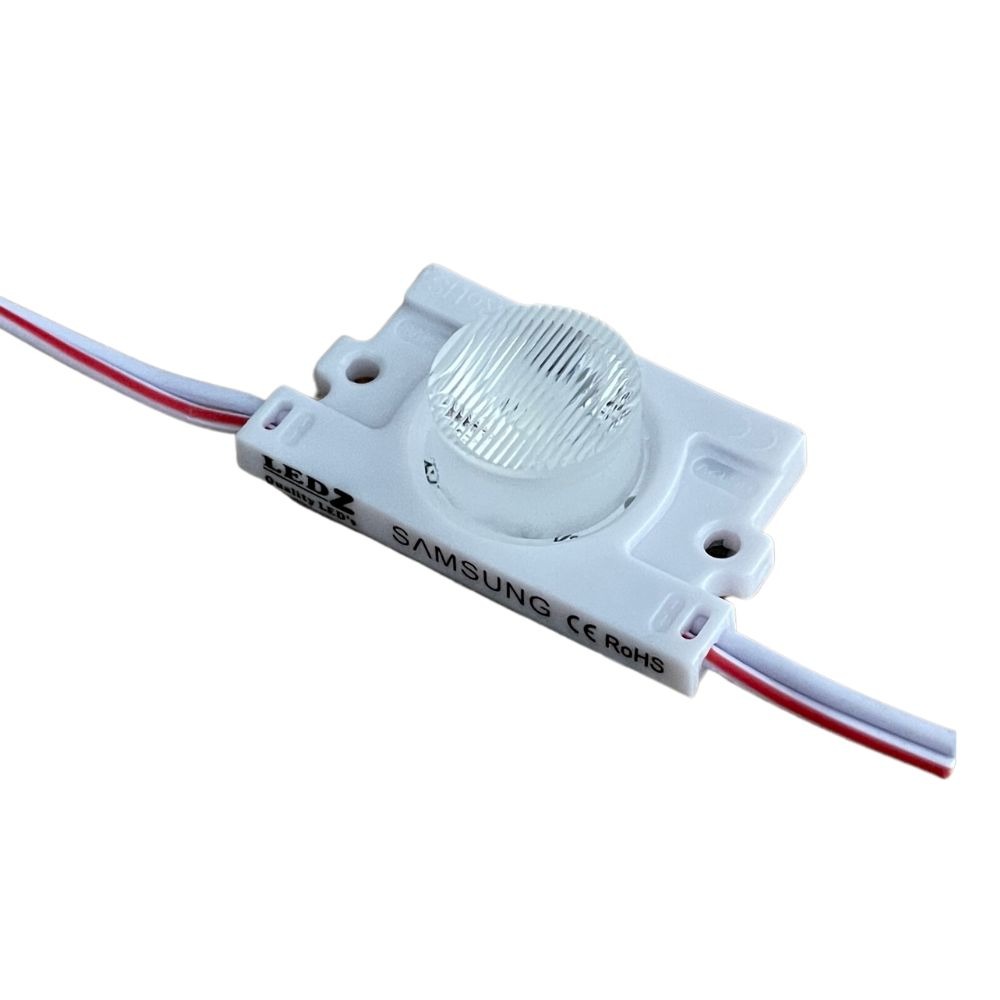

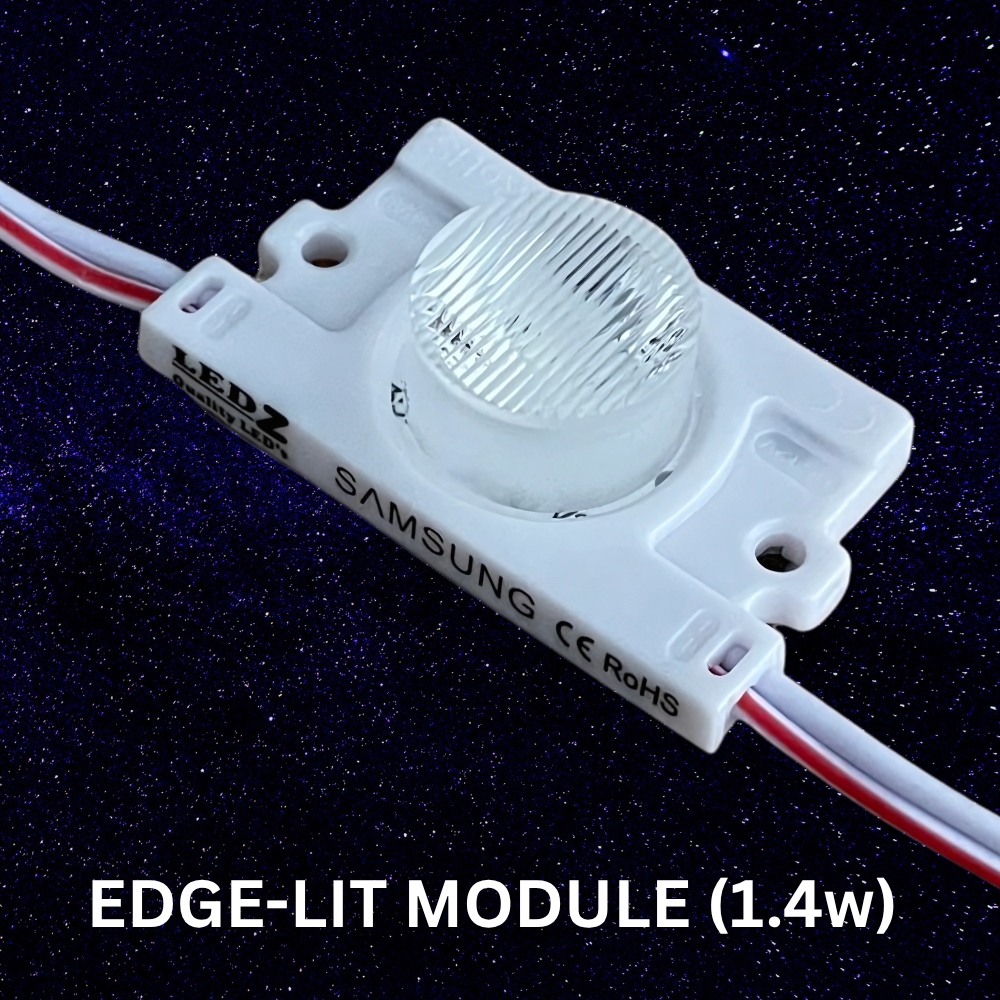

LED Module / Edge-Lit / 12°×56° / 1.4W / 12V / 6500K White / 5 Year Warranty
Online Price:
Original price was: R21.00.R19.00Current price is: R19.00. Vat Incl.
1339 in stock (can be backordered)
Deliveries
- FREE Deliveries to all Signage Companies in S.A
Where can I be used…
-
Edge lighting for acrylic signs and displays, Lightboxes with side illumination, Menu boards, retail signage, and architectural features
Side/Edge-Lit Light Boxes (150mm Deep)
Max. Box Height: 1000mm (Top and Bottom)
Why use me?
-
1.4W high-intensity output designed to light from the edge inward
-
Specialized optics direct light evenly across acrylic or glass panels
-
Slim and efficient design, perfect for side-lighting applications
LED Module / Edge-Lit / 12°×56° / 1.4W / 12V / 6500K White / 5 Year Warranty
Online Price:
Original price was: R21.00.R19.00Current price is: R19.00. Vat Incl.
1339 in stock (can be backordered)
Product Details
Specifications
| Input | 12 Volt DC |
| Power | 1.4 Watt |
| Current | 0.116A |
| Lumens | 125 Lumens |
| Colour Temp | 6500k |
| Qty LED Chips | 1 |
| Viewing Angle | 12×56 ° Angle |
| Dimensions | 44mm x 26mm x 12mm |
| Mounting | 3M VHB Double Sided Tape or screw mount |
| Wire Length | 80mm |
| Max Ambient Temp | 60° C |
| Waterproofing | (IP67) |
| Warranty | 5 Years |
| Max Module | 20 Modules Per String in Series |
| Datasheet |  |
Do's and Donts
Do’s
-
Do use a 12V DC power supply with enough capacity
-
Do install along the edge of panels for optimal spread
-
Do mount on clean surfaces and ensure firm contact
Don’ts
-
Don’t install on surfaces not intended for edge lighting
-
Don’t expose to moisture unless IP-rated for outdoor use
-
Don’t force or twist modules during fitting
Colour Chart
Basic Diagram & Checklist
