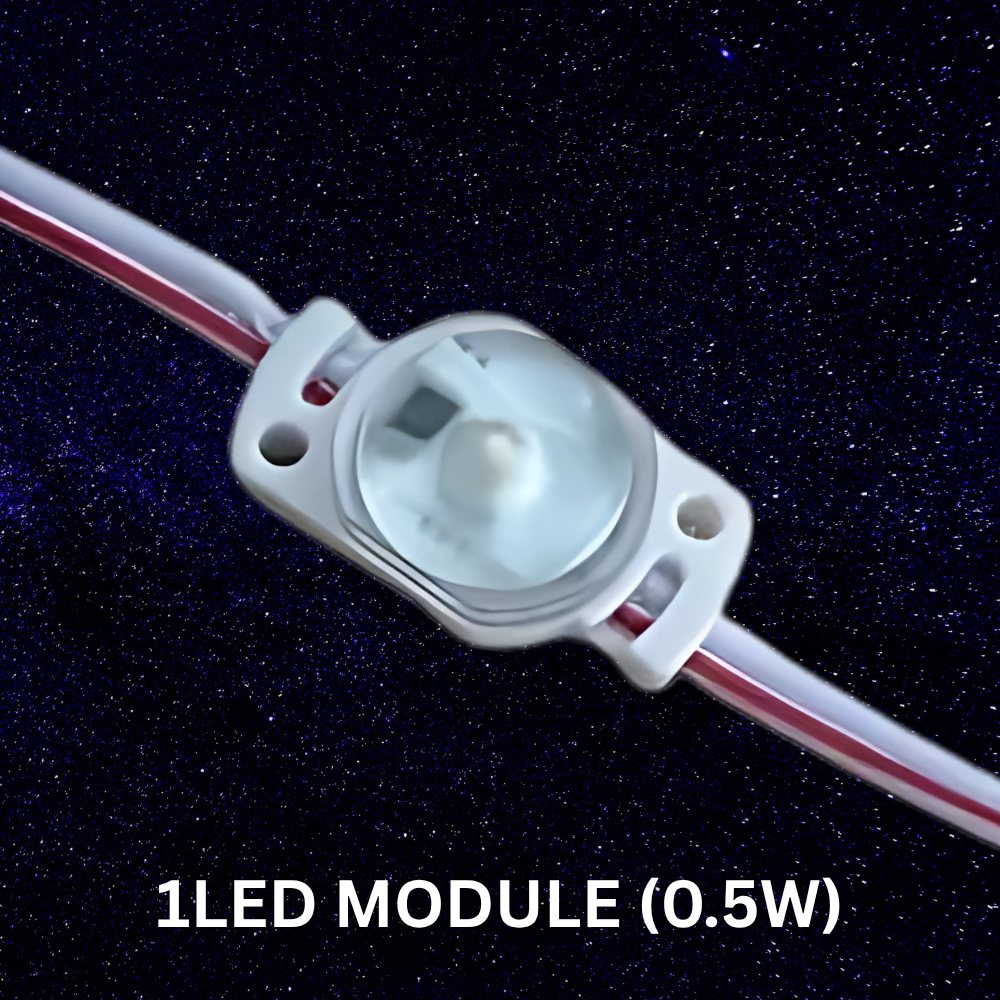

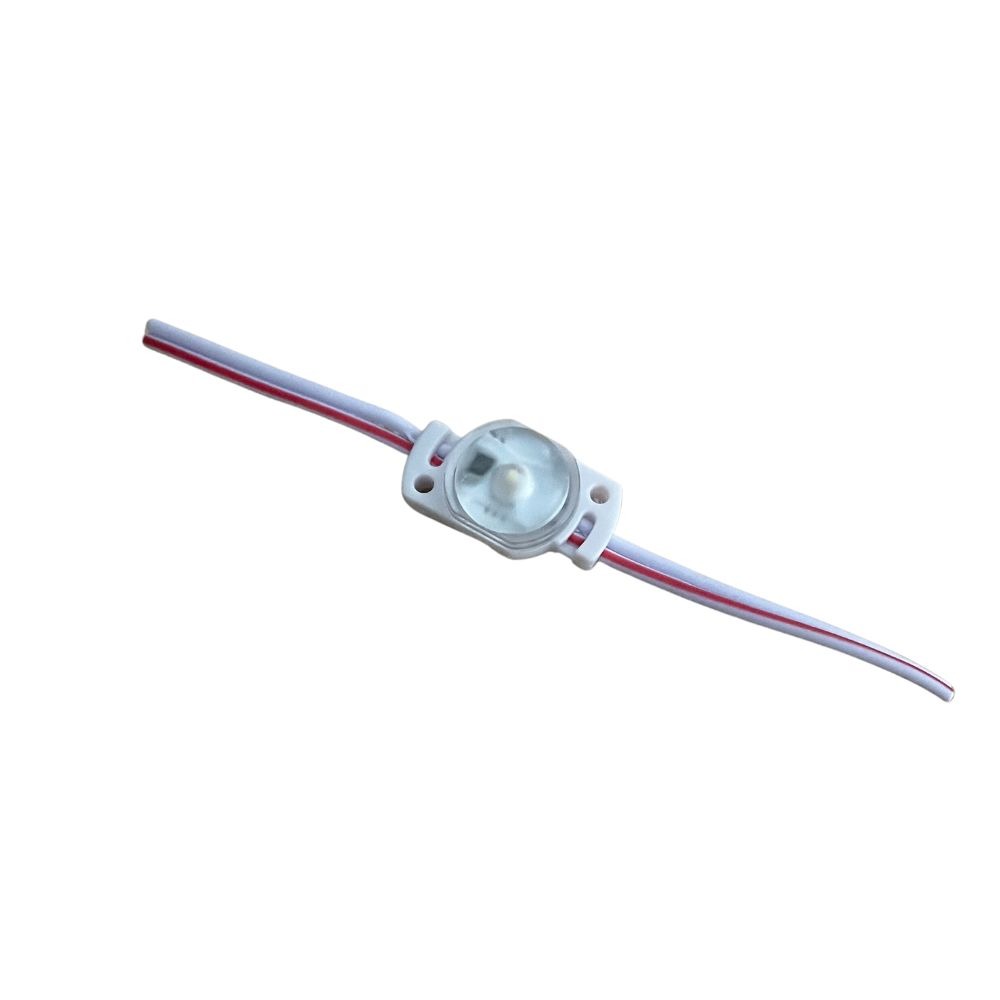

LED Module – 1 Chip / 160° / 0.5W / 12V / 9000K – 11 000K / Ice White / 5 Year warranty
Online Price:
Original price was: R10.00.R9.00Current price is: R9.00. Vat Incl.
944 in stock (can be backordered)
Deliveries
- FREE Deliveries to all Signage Companies in S.A
Where can I be used…
-
Small channel letters and narrow signage, Accent lighting and detailed display areas, Decorative edge lighting or logo illumination,
-
Fabricated Letters and Light Boxes (40-100mm deep)
Why use me?
-
Compact design with powerful 0.5W brightness, ideal for tight or detailed spaces
-
Single LED ensures focused, directional lighting
-
Energy-efficient and long-lasting for low-maintenance installations
LED Module – 1 Chip / 160° / 0.5W / 12V / 9000K – 11 000K / Ice White / 5 Year warranty
Online Price:
Original price was: R10.00.R9.00Current price is: R9.00. Vat Incl.
944 in stock (can be backordered)
Product Details
Specifications
| Input | 12 Volt DC |
| Power | 0.5 Watts |
| Current | 0.041A |
| Lumens | 47 Lumens |
| Colour Temp | 9000K-11000K |
| Qty LED Chips | 1 (2835 Chip) |
| Viewing Angle | 160° Angle |
| Dimensions | 19mm x 14mm x 9.7mm |
| Mounting | 3M VHB Double Sided Tape or screw mount |
| Wire Length | 100mm |
| Max Ambient Temp | 60° C |
| Waterproofing | (IP67) |
| Warranty | 5 Years |
| Max Module | 20 Modules Per String in Series |
| Datasheet |  |
Do's and Donts
Do’s
-
Do use a stable 12V DC power supply
-
Do apply to clean, dry surfaces for best adhesion
-
Do secure wiring connections to prevent voltage drop
Don’ts
-
Don’t overload the power supply with too many modules
-
Don’t use outdoors unless rated for waterproof use
-
Don’t bend or twist the module during installation
Colour Chart
Basic Diagram & Checklist
Bulk Pricing
